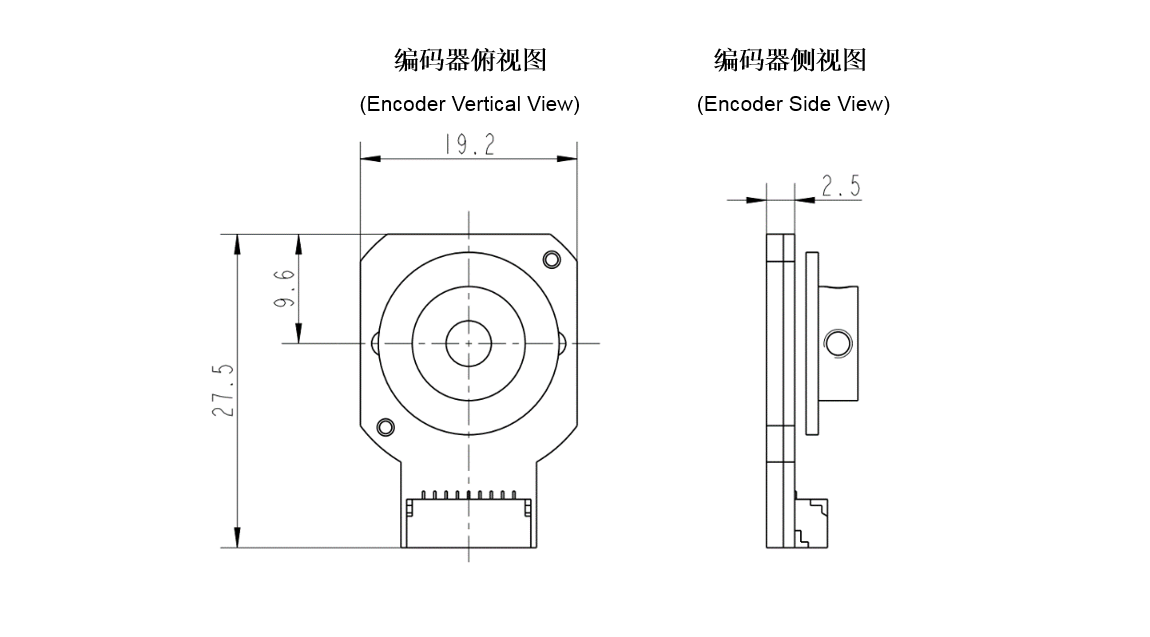

电机轴径Motor Shaft diameter

3mm,4mm,5mm,6mm,6.35mm,7mm

Suitable for shaft   diameter 3mm,4mm,5mm,6mm,6.35mm,7mm

存储温度Storage Temperature

-40℃～85℃

推荐工作环境

Environmental   conditions

场合

Application

无腐蚀性，易燃，易爆，导电性气体，液体和粉尘No corrosive,   flammable, explosive, conductive gas, liquid and dust.

工作温度Temperature

-25℃～80℃

湿度

Humidity

不高于85% RH

No more than 85% RH

电气

参数Electrical Parameter

供电电压Supply Voltage

5VDC±0.5V

     消耗电流Current   Consumption

≤60mA

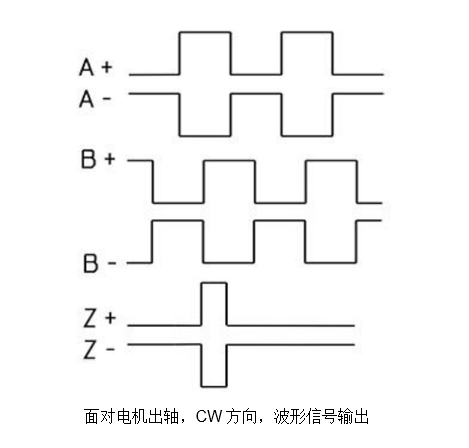

差分信号输出

Differential   Single Output

5V,GND,   A+/A-,B+/B-,Z+/Z-,

  输出电平方式  Output Level mode

TTL电平(TTL Compatible)

索引信号宽度  Index Width

1/4T

差分输出电压

Differential   Output Voltage

高电平输出电压(VoH) ≥3.4V

High Level   Output (VoH) ≥3.4V

低电平输出电压(VoL) ≤0.5V

Low Level Output   (VoL) ≤0.5V

差分信号输出格式

Differential   Signal Output Format

线驱动26C31

Line Drive 26C31

可选分辨率(单位Unit：线/CPR)

Optional   Resolution

500线/1000线/2000线

占空比 Duty Cycle

50% ±10%

相位差 Phase Difference

 90°±10°

响应频率Frequency Response

≤220KHz        注意：信号频率 = (转速(Rpm)×线数)/60

Note: The signal   frequency = (Speed(Rpm)  *  number of Lines)/60
