FL57BLS-60JB
产品中心 正齿轮箱

FL57BLS-60JB

57mm无刷电机配60mm正齿轮箱
选件:
  • FL57BLS-60JB

    编码器

  • FL57BLS-60JB

    齿轮箱

  • FL57BLS-60JB

    接插件

  • FL57BLS-60JB

    刹车

齿轮箱参数(Spur Gearbox Specifications)

减速比(Ratio)357.51012.5152530507590100120150
减速级数(Number Of gear trains)234
额定转矩(Nominal torque)5N.m
极限转矩(Ultimate torque)10N.m
效率(Efficiency)0.810.730.66



正齿轮箱无刷直流电机参数(Spur Geared BLDC Motor Specifications):

减速比(Ratio)357.51012.5152530507590100120
FL57BLS01-60JB额定转矩(Rated torque) (N.m)0.260.440.660.891.111.3322.445.46.57.268.7

额定转速(Rated speed) (RPM)13338005334003202661601338053444033

极限转矩(Ultimate torque) (N.m)0.781.321.982.673.333.9967.210



FL57BLS02-60JB额定转矩(Rated torque) (N.m)0.540.891.331.782.222.6744.88------------

额定转速(Rated speed) (RPM)133380053340032026616013380------------

极限转矩(Ultimate torque) (N.m)1.622.673.995.346.66810

------------
FL57BLS03-60JB额定转矩(Rated torque) (N.m)0.81.3322.673.34467.22---------------

额定转速(Rated speed) (RPM)1333800533400320266160133---------------

极限转矩(Ultimate torque) (N.m)2.43.996810


---------------
FL57BLS04-60JB额定转矩(Rated torque) (N.m)1.061.852.673.564.455.3489.6---------------

额定转速(Rated speed) (RPM)1333800533400320266160133---------------

极限转矩(Ultimate torque) (N.m)3.185.55810



---------------



减速比(Ratio)L2(mm)L1(mm)
FL57BLS01-60JBFL57BLS02-60JBFL57BLS03-60JBFL57BLS04-60JB
3---1559799911932
25---15059799911940

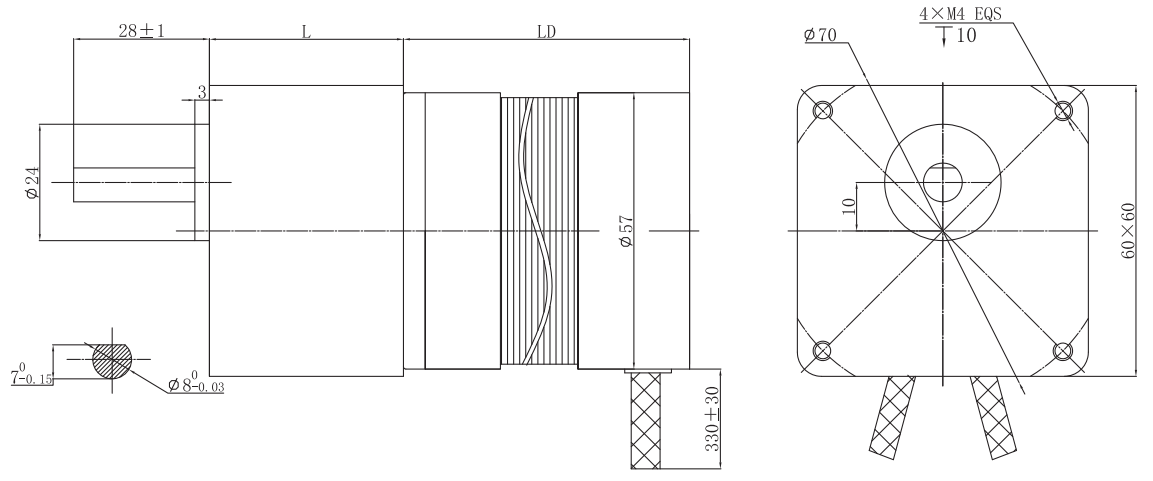

电机尺寸
