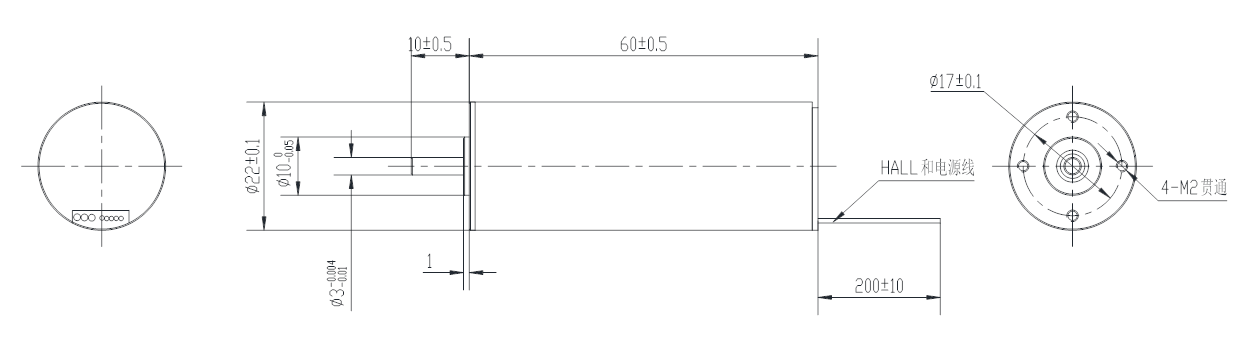

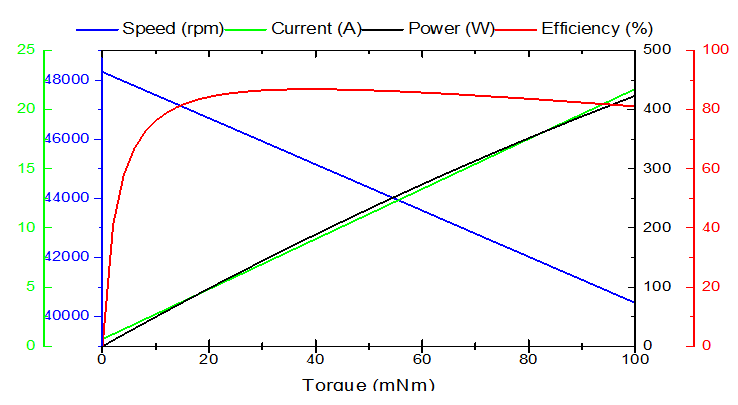

绕组连接方式 ( Winding Type ) | 星形 ( Star connection) |
介电强度 ( Dielectric Strength ) | 360VAC/1S |
绝缘电阻( Insulation Resistance ) | 100MΩ, 500VDC |
环境温度 ( Ambient Temperature ) | -20°C ~ +50°C |
绝缘等级 (Insulation Class) | Class B |
径向间隙 ( Radial Play ) | 0.02mm@4N |
轴向间隙 ( Axial Play ) | 0.14mm@4N |
最大径向负载 ( Max radial force ) | 8N距法兰5mm ( 5mm From the flange) |
最大轴向负载 ( Max axial force) | 4N |
单 位 (Unit) | FL22SBL58-24V-450-100A | FL22SBL70-24V-300-130A | |
极数 ( Number of poles ) | 2 | 2 | |
相数 ( Number of phases ) | 3 | 3 | |
额定电压 ( Rated voltage ) | VDC | 24 | 24 |
空载转速 (No load speed) | RPM | 48000 | 40000 |
空载电流 (No load current) | A | 0.56 | 0.7 |
额定转矩 ( Rated torque) | mN.m | 21 | 41 |
额定电流 (Rated current) | A | 5 | 8.5 |
额定速度 ( Rated speed ) | RPM | 45000 | 30000 |
额定功率 ( Rated power ) | W | 100 | 130 |
额定效率 (Rated efficiency) | % | 83.8 | 80 |
峰值转矩 ( Peak torque ) | mN.m | 63 | 82 |
峰值电流 ( Peak current ) | A | 15 | 17 |
线电阻 ( Line to line resistance ) | ohms@20℃ | 0.15 | 0.35 |
线电感 ( Line to line inductance ) | mH | 0.012 | 0.036 |
转矩常数 ( Torque constant ) | mNm/A | 4.72 | 5.67 |
反电势 ( Back EMF ) | Vrms/Krpm | 0.35 | 0.42 |
外壳-环境热阻( Housing - Ambient thermal resistance) | K/W | 6.74 | 6.2 |
电机热时间常数(Motor thermal time constant) | S | 900 | 860 |
绕组最高允许温度(Max temperature of winding) | ℃ | 155 | 155 |
电气时间常数(Electrical time constant) | ms | 0.08 | 0.1 |
线颜色( Color) | 线型号(Type) | 功能( Functions) |
红色(Red) | AFR250-SY AWG26 | 霍尔电源正(Vcc) |
蓝色(Blue) | 霍尔 W ( Hw ) | |
绿色(Green) | 霍尔 V ( Hv ) | |
白色(White) | 霍尔 U ( Hu ) | |
黑色(Black) | 霍尔电源负(GND) | |
黄色(Yellow) | UL1332 AWG22 | U相 ( Phase U ) |
红色( Red) | V相 ( Phase V ) | |
黑色(Black) | W相 ( Phase W ) |
该款电机可以根据客户需求定制。
The motor can be designed &manufactured with customized request.
