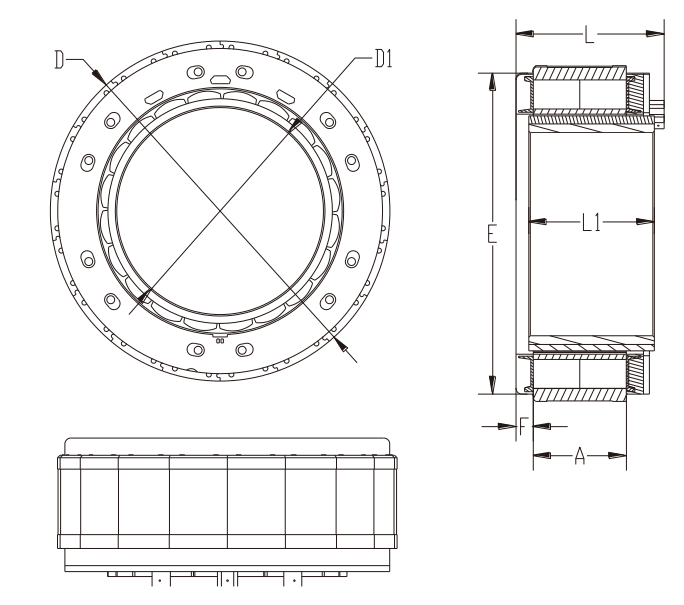

定子外径D

123mm

js9

定子长度L

65mm

±1

转子内径D1

45mm

H8

转子长度L1

36mm

±0.25

骨架外圆E

118mm

±0.2

介电强度

( Dielectric   Strength )

600VAC/1S

绝缘电阻

 ( Insulation Resistance )

100MΩ, 500VDC

环境温度

( Ambient   Temperature )

-20°C   ~     +50°C

绝缘等级

(Insulation   Class)

Class B

红色  ( Red )

AWG14

U相 (   Phase U )

黄色  ( Yellow )

V相 (   Phase V )

蓝色  ( Blue)

W相 (   Phase W )

极数  ( Number of poles )

10

相数  ( Number of phases )

3

额定电压 (   Rated  voltage )

VDC

48

额定转矩 (   Rated torque)

N.m

3.8

额定电流(Rated current)

A

24

额定速度 (   Rated speed )

RPM

2400

额定功率 ( Rated   power )

W

955

最大转速(Maximum speed)

RPM

3000

峰值转矩 (   Peak torque )

N.m

9.5

峰值电流 (   Peak current )

A

60

线电阻 (   Line to line resistance )

ohms@20℃

0.033

线电感 (   Line to line inductance )

mH

0.19

转矩常数 (   Torque constant )

Nm/A

0.18

反电势 (   Back EMF )

Vrms/KRPM

11.2

机身长度 (   Motor length )

mm

65

电气时间常数(Electrical   time constant)

ms

5.8
