Characteristics:

1) Adopting a dedicated 32-bit motor control chip

2) Input voltage 9VDC~30VDC, wide voltage input

3) Supports multiple speed regulation modes (PWM/analog)

4) Equipped with control functions such as start stop, forward and reverse rotation, braking, etc

5) High precision speed and current dual closed-loop control

6) Adopting non inductive FOC sine wave control technology, compared to square wave control, reduces noise and torque ripple

7) It has protection functions such as overvoltage, undervoltage, overcurrent, overtemperature, and locked rotor

8) Ultra high cost-effectiveness, economically efficient

9) Acceptable customization

Typical applications:

Widely used in various small and medium-sized automation equipment and instruments, such as electronic processing equipment, 3C non-standard automation equipment, screw locking machines, wire stripping machines, winding machines, terminal machines, laser machines, marking machines, spray painting machines, small and medium-sized carving machines, automatic grabbing equipment, specialized CNC machine tools, packaging equipment and robots.

Product Overview：

It adopts a 32-bit dedicated motor control chip, with high integration, small size, and complete protection measures. The motor adopts a new PWM control technology, which enables brushless motor operation to have advantages such as high rotation, low vibration, low noise, and good stability.

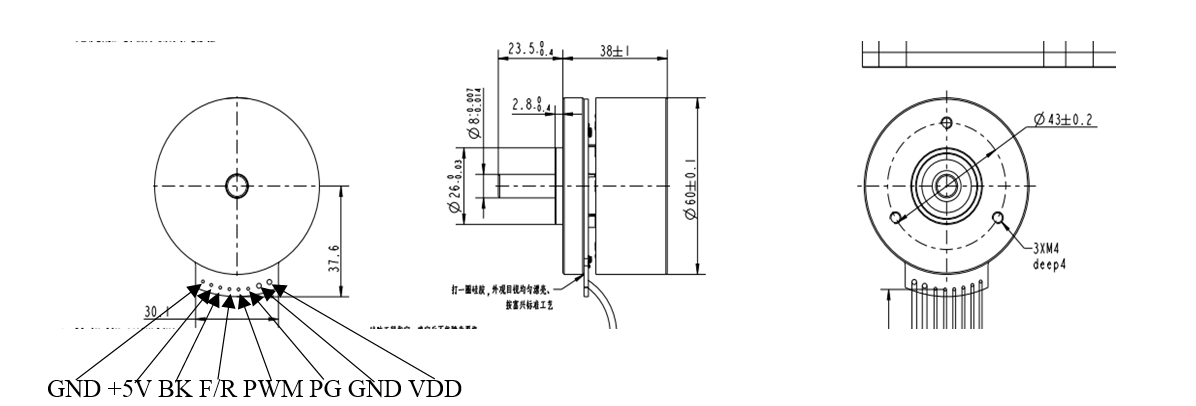

Control Port（B08B-PASK-1(LF)(SN)  8-bit pin）
