IWS50L-3D5250B-MCAFC

Product Hub Servo Catalog

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.

option:

Inquiry Contact

Parameter
Overall Dimensions
Download
Cooperation

1. Specifications

Model	IWS50L-3D5250B-MCAFC
Diameter Size	130mm
Rated Voltage	24VDC
Rated Current	5.8 Arms
Maximum speed	250rpm(Line speed 2m/s)
Rated Torque	3.5 N.m
Peak Torque	8 N.m
Communication	UART+CAN
UART Baudrate	115200bps，support controlled by controller or PC software
CAN Baudrate	500kbps/1Mbps set by DIP switch
Protection Function	Over-Voltage,Low-Voltage,Over-load,Short-circuit,High temperature,Speed-loss etc.
Operating Temperature	-10℃～40℃（Non-freezing）
Operating Humidity	5～95%RH（Non-condensing）
Storage Temperature	-10℃～70℃（Non-freezing）
Storage Humidity	Below 90%RH（Non-condensing）
Protection Class	Ip67
Weight	2.1Kg
Suggested Load (2 PCS)	Below 80kg

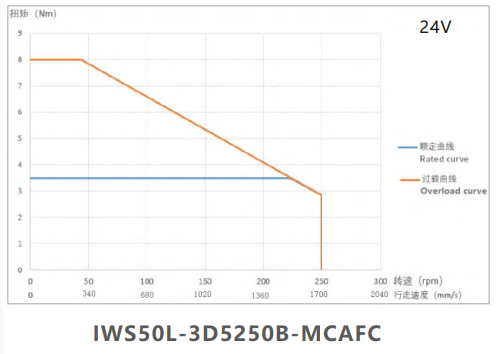

2. Torque Curve

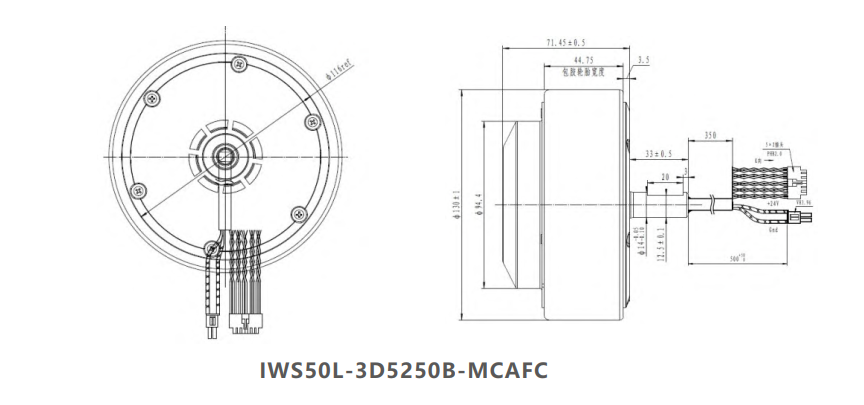

Motor size

Download

IWS Series Hub Motor Motor User Manual - Fulling Motor

1.1 MB
