FD860AH
Product Stepping motor driver

FD860AH

1. New 32-bit DSP Technology
2. Ultra-low vibration noise
3. Built-in high micro-step, ranging from 200 to 51200;
option:
  • FD860AH
  • FD860AH
  • FD860AH
  • FD860AH

Features :

● New 32-bit DSP Technology

● Ultra-low vibration noise

● Built-in high micro-step, ranging from 200 to 51200

● Motor auto-identification and parameter auto-configuration technology.

● Variable current control for less motor heating

● Automatic idle-current reduction in half

● Suitable for 4,6,8 lead 2-phase motors

● Optically isolated differential signal input

● Pulse frequency up to 500 KHz(default 200KHz)

● Output current programmable, from 2.1A to 7.2A

● Driver power supply: DC:+24V-75VAC(Universal Current)

● Over-voltage, Under-voltage, over-current protections


Typical application:

FD860 can be used in various kinds of small and medium-sized equipment and machines, such as engraving machines, labeling machines, laser cutters, laser typesetting, plotting instrument, CNC machine, automatic assembly equipment, and so on. Particularly adapt to the applications desired with low noise, high speed.


Product overview :

The FD860 adopts the latest 32-bit DSP digital processing technology. Drive control algorithm uses advanced variable current technology and advanced frequency conversion technology. The driven motors can run with low heating, small noise, smooth movement. Users can set any micro-step within 200~51200 and any current value within the rated current, which can meet the needs of most applications. Thanks to the built-in micro-resolution technology, the effect of high resolution can be achieved and the driven motors can run with much smaller noise, lower heating, smoother movement at low to high speed even under low resolution conditions. Motor auto-identification and parameter auto-configuration technology offers optimum responses with different motors and easy-to-use.


Microstep Resolution Selection :

Microstep

2

4

8

16

32

64

128

256

5

10

20

25

40

50

100

200

PU/Rev

400

800

1600

3200

6400

12800

25600

51200

1000

2000

4000

5000

8000

10000

20000

40000

SW8

ON

ON

ON

ON

ON

ON

ON

ON

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

SW7

ON

ON

ON

ON

OFF

OFF

OFF

OFF

ON

ON

ON

ON

OFF

OFF

OFF

OFF

SW6

ON

ON

OFF

OFF

ON

ON

OFF

OFF

ON

ON

OFF

OFF

ON

ON

OFF

OFF

SW5

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF


Dynamic current Setting :

Current peak

Default

3.08A

3.77A

4.45A

5.14A

5.83A

6.52A

7.20A

Current RMS

Default

2.57A

3.14A

3.71A

4.28A

4.86A

5.43A

6.00A

SW3

ON

ON

ON

ON

OFF

OFF

OFF

OFF

SW2

ON

ON

OFF

OFF

ON

ON

OFF

OFF

SW1

ON

OFF

ON

OFF

ON

OFF

ON

OFF

SW4

SW4 is used for standstill current setting. off means that the standstill current is set to be half of the selected dynamic current, and on means that standstill current is set

to be the same as the selected dynamic current. In general SW4 should be set to off to enable the heat generation of the motor and driver to be reduced and the reliability

to be improved. The current automatically reduced to 60% of dynamic current setting 400 millisecond after the last pulse. Theoretically, This will reduce motor heating to

30% (due to P=I2*R)) of the original value.

When SW1,SW2.SW3 are set to off, it can be set to the required current by PC Software, Maximum value is 7.2A and resolution is 0.1A, If it is not set, the default is 2.0A.


Interface description :


Signal

Function

Description

PWR

Power indicator

The green indicator light is on when the power is on.

ALARM

Fault indicator

The blinking period is 3 seconds. The number of blinking indicates fault information. One time indicates over-current, and two times indicates over-voltage.

PU+

Pulse positive input

At pulse positive input, +5V to +24V can drive. If the input signal is higher than +24V, the current limiting resistor must be connected to the PU- port.

PU-

Pulse negative input

The falling edge is effective, and the motor takes one step whenever the pulse changes from high to low.

DR+

Direction positive input

At direction positive input, +5V to +24V can drive. If the input signal is higher than +24V, the current limiting resistor must be connected to the PU- port.

DR-

Direction negative input

Used to change the motor direction.

ENA+

Enable positive input

At enable positive input, +5V to +24V can drive. If the input signal is higher than +24V, the current limiting resistor must be connected to the PU- port.

ENA-

Enable negative input

When effective, the motor releases, and has the function of clearing the position error alarm.

A+/A-

Motor line A-phase

Lead wire A+/A- of motor A-phase

B+/B-

Motor line B-phase

Lead wire B+/B- of motor B-phase

AC/AC

Power supply input

Driver power supply: AC:+24V-75VAC(Universal   Current)

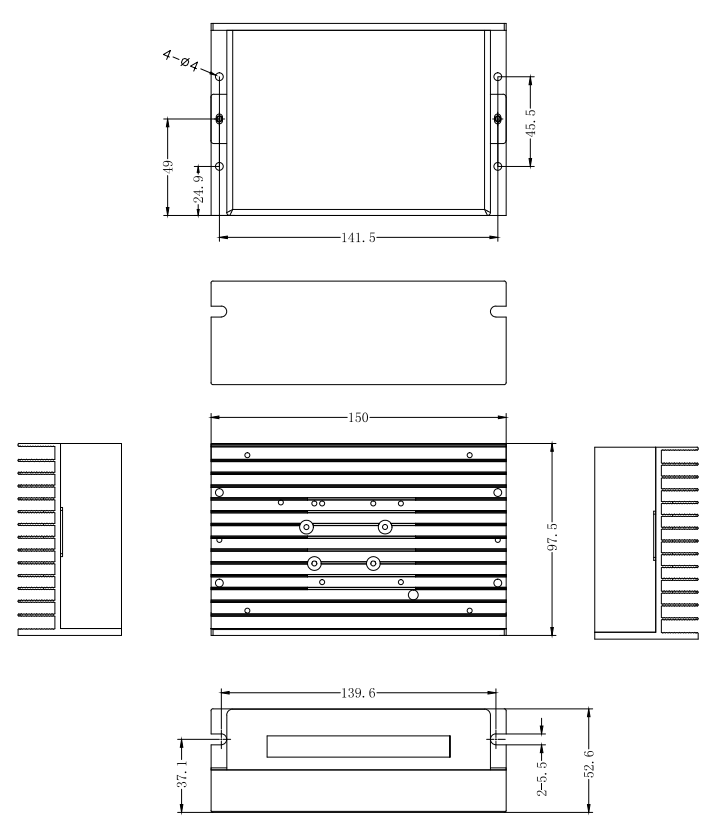

Motor size

FD860

Download
User's Manual for FD860AH Digital 2-Phase Stepper Driver 566.68 KB
