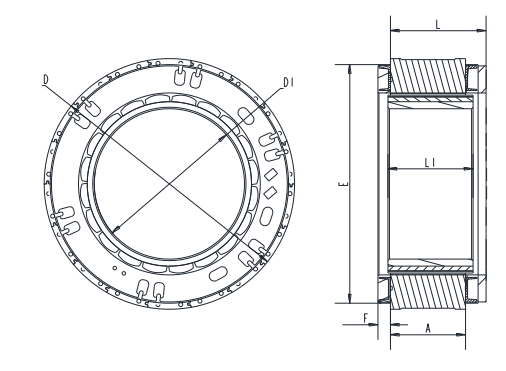

定子外径D

115mm

115mm

±0.043(js9)

定子长度L

31.8mm

56.6mm

±1

转子内径D1

74mm

74mm

0.046(H8)

转子长度L1

32.7mm

57.7mm

±0.25

灌胶面外圆E

112mm

112mm

±0.2

灌胶面高度F

5.5mm

5.5mm

0.5

铁芯高度 A

25mm

50mm

/

介电强度

( Dielectric   Strength )

1000VAC/1S

绝缘电阻

 ( Insulation Resistance )

100MΩ, 500VDC

环境温度

( Ambient   Temperature )

-20°C   ~   +50°C

绝缘等级

(Insulation   Class)

Class B

白色 (WHT)

UL1332

AWG26

NTC

白色 (WHT)

NTC

黄色  ( Yellow )

UL1332

AWG16

U相 (   Phase U )

红色  ( Red )

V相 (   Phase V )

黑色  ( Black)

W相 (   Phase W )

极数  ( Number of poles )

20

20

相数  ( Number of phases )

3

3

额定电压 (   Rated  voltage )

VDC

48

48

额定转矩 (   Rated torque)

N.m

3.9

7.8

额定电流(Rated current)

A

14.1

13.0

额定速度 (   Rated speed )

RPM

1400

620

额定功率 (   Rated power )

W

571

617

最大转速(Maximum speed)

RPM

1900

900

峰值转矩 (   Peak torque )

N.m

11.7

23.4

峰值电流 (   Peak current )

A

42.3

39.0

线电阻 (   Line to line resistance )

ohms@20℃

0.2

0.35

线电感 (   Line to line inductance )

mH

0.5

1.6

转矩常数 (   Torque constant )

Nm/A

0.293

0.662

反电势 (   Back EMF )

Vrms/KRPM

17.7

          40

重量 (   Weight )

g

1100

         2200

电气时间常数(Electrical   time constant)

ms

2.5

4.57
