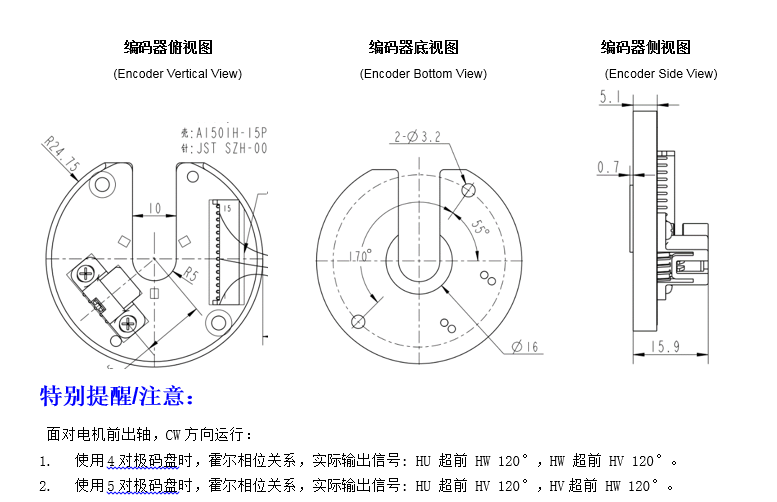

Motor Shaft   diameter

Suitable for shaft   diameter 4mm,5mm,6mm,6.35mm,8mm

Storage Temperature

-40℃～85℃

Environmental   conditions

Application

No corrosive, flammable, explosive, conductive   gas, liquid and dust.

Temperature

-25℃～80℃

Humidity

No more than 85% RH

Electrical Parameter

Supply Voltage

5V±0.5V

  Current Consumption

≤120mA

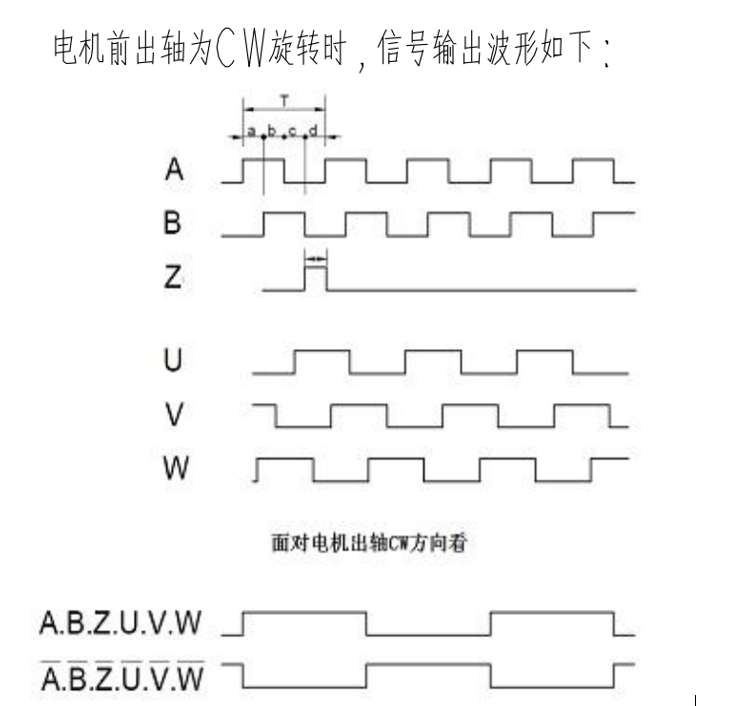

Differential Single Output

5V,GND, HU+/HU-,HV+/HV-,HW+/HW-，A+/A-,B+/B-,Z+/Z-,

 Output Level mode

TTL Compatible

Index Width

1/4T / 1T(According to the CPR)

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Low Level Output   (VoL) ≤0.4V

Differential   Signal Output Format

Line Drive 26C31

Optional   Resolution（Unit:CPR）

Decimal：100,200,360,400,500,1000,2000,2500

Binary：256,512,1024,2048

Pole-pairs

2/4/5 (According)

HU/HV/HW

120°

Duty cycle

50% ±10%

Phase difference

 90°±10°

Frequency Response

≤500KHz

Note: The signal frequency = (Speed(Rpm) *  number of Lines)/60
