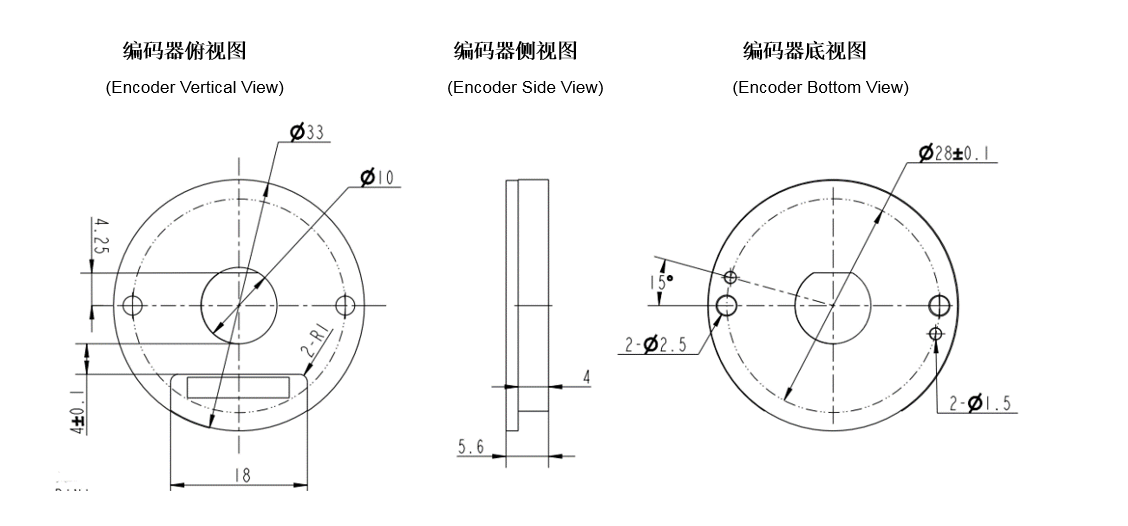

电机轴径

Motor Shaft   diameter

适配轴径4mm,5mm,6mm,6.35mm

Suitable for shaft   diameter 4mm,5mm,6mm,6.35mm

存储温度 Storage Temperature

-40℃～85℃

推荐工作环境

Environmental   conditions

场合Application

无腐蚀性，易燃，易爆，导电性气体，液体和粉尘

No corrosive, flammable, explosive, conductive   gas, liquid and dust.

工作温度Temperature

-25℃～80℃

湿度Humidity

不高于85% RH

No more than 85% RH

供电电压 Supply Voltage

5V±0.5V

消耗电流 Current Consumption

≤120mA

差分信号输出

Differential   Single Output

5V,GND,Z-,Z+,B-,B+,A-,A+,HW-,HW+,HV-,HV+,HU-,HU+

输出电平方式  Output Level mode

TTL电平 (TTL Compatible)

索引信号宽度

Index Width

1/4T or 1/2T or 1T

 (根据需要定制 According to the needing)

差分输出电压

Differential   Output Voltage

高电平输出电压(VoH) ≥3.4V

High Level   Output (VoH) ≥3.4V

电气

参数

Electrical Parameter

低电平输出电压(VoL) ≤0.5V

Low Level Output   (VoL) ≤0.5V

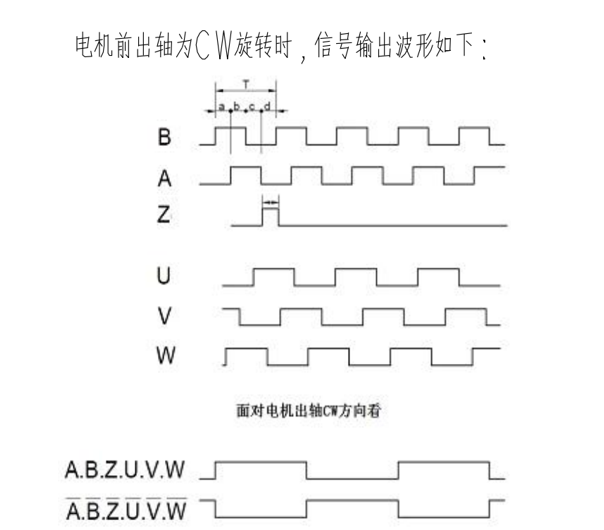

差分信号输出格式

Differential   Signal Output Format

线驱动26C31

Line Drive 26C31

可选分辨率（单位Unit：线/CPR）

Optional   Resolution

2500线(根据需要定制)

极对数 Pole-pairs

2/4/5对极(可定制 According)

HU/HV/HW信号相位差

120°

占空比 Duty Cycle

50% ±10%

A/B信号相位差 Phase difference

 90°±10°

 响应频率

Frequency Response

≤500KHz        注意：信号频率 = (转速(Rpm)×线数)/60

Note: The signal frequency = (Speed(Rpm) *  number of Lines)/60
