86STH-90JB
产品中心 减速电机

86STH-90JB

1.8° 86mm, Nema 34 正齿轮箱步进电机
选件:
  • 86STH-90JB

    编码器

  • 86STH-90JB

    齿轮箱

  • 86STH-90JB

    接插件

  • 86STH-90JB

    刹车

特性概要(General specification)

Ratio

减速比

3

5

6

7.5

9

10

12.5

15

18

20

25

30

36

40

50

60

75

90

100

120

Weight

重量

1.3kg

1.5kg

Number of gear trains

减速级数

2

3

4

Nominal torque

额定转矩

30N.m

Ultimate torque

极限转矩

45N.m

Efficiency

效率

81%

73%

66%

Backlash

回差

4 deg

3.5deg

2.5deg



齿轮箱电机性能(Gear Motor Specifications)

Ratio

减速比

3

5

6

7.5

9

10

12.5

15

18

20

25

30

36

40

50

60

75

90

100

120



FL86STH65-90JB

Torque(N.m) (at 400rpm)

转矩(N.m) (在 400rpm)

3.6

6

7.2

9.1

10.9

12.1

15.1

18.2

19.7

21.9

27.3

---

---

---

---

---

---

---

---

---

speed(rpm)转速(rpm)

133

80

67

53

44

40

32

27

22

20

16

---

---

---

---

---

---

---

---

---



FL86STH80-90JB

Torque(N.m) (at 400rpm)

转矩(N.m) (在 400rpm)

4.8

8.1

9.7

12.1

14.6

16.2

20.2

24.3

26.2

29.2

---

---

---

---

---

---

---

---

---

---

speed(rpm)转速(rpm)

133

80

67

53

44

40

32

27

22

20

---

---

---

---

---

---

---

---

---

---



FL86STH118-90JB

Torque(N.m) (at 400rpm)

转矩(N.m) (在 400rpm)

9.7

16.2

19.4

24.3

29.1

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---

speed(rpm)转速(rpm)

133

80

67

53

44

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---



FL86STH156-90JB

Torque(N.m) (at 400rpm)

转矩(N.m) (在 400rpm)

12.1

20.2

24.3

30.3

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---

speed(rpm)转速(rpm)

133

80

67

53

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---

---


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

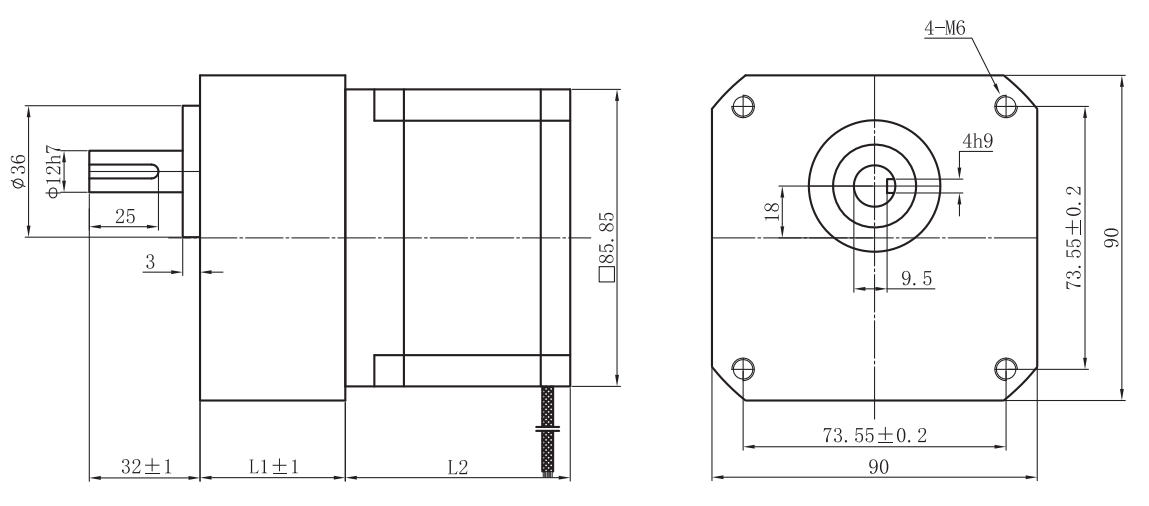

电机尺寸

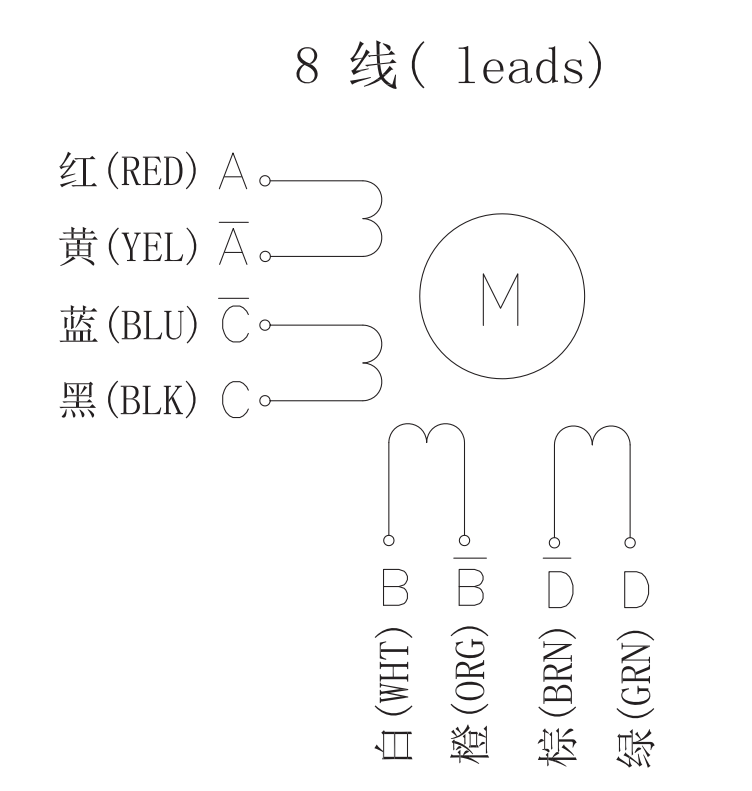

接线图(Wiring Diagram)
