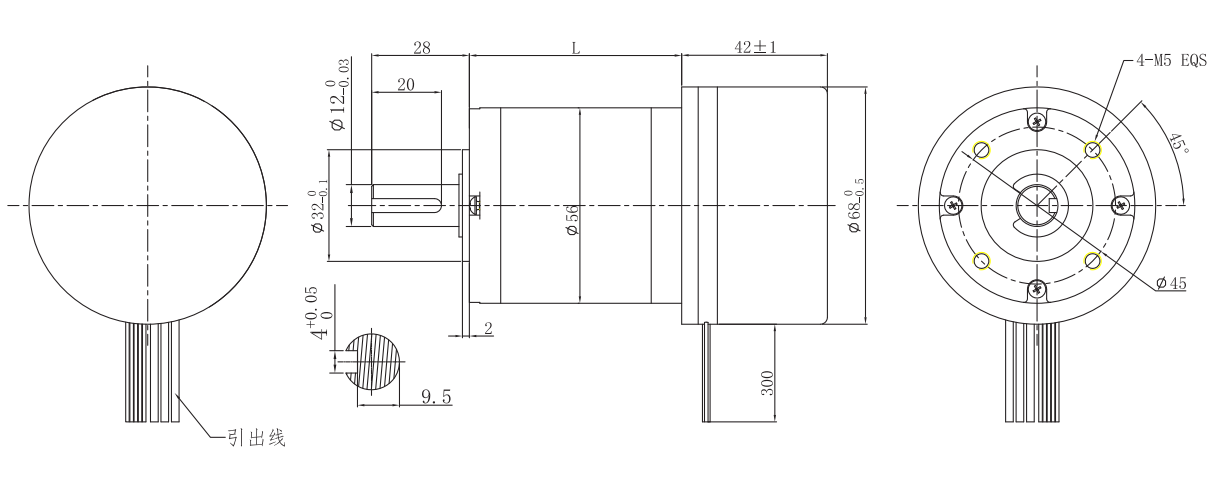

外形尺寸
资料下载
联系合作BLDC Planetary Gear Moto （Ring Gear Material: Metal）
| 型号 | 范围 |
| FL60BLW42/56JM300K | Φ56减速器，允许转矩范围：4.0N.m~45N.m 56mm OD Planetary Gearbox, Permissible Load Range: 4.0N.m~45N.m |
| № | 颜色Color | 引出线型号Type | 功 能Functions | 说 明Description |
| 1 | YEL | UL1332 | Phase U | |
| 2 | RED | AWG18 | Phase V | |
| 3 | BLK | Phase W | ||
| 4 | BLK | GND | Hall 接地 | |
| 5 | RED | V cc | Hall电源DC(+4.5V ~ 18VDC) | |
| 6 | BLU | UL1332 | Hall A | |
| 7 | GRN | AWG26 | Hall B | |
| 8 | WHT | Hall C |
| 电机型号 | 极 数 | 相 数 | 额定电压 | 空载转速 | 额定转速 | 额定转矩 | 额定功率 | 峰值转矩 | 峰值电流 | 电 阻 | 电 感 |
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Reak torque | Peak current | Line to line resistance | Line to line inductance |
| VDC | r/min | r/min | mN.m | W | mN.m | A | ohms | mH | |||
| FL60BLW42-24V-37110A | 14 | 3 | 24 | 4300 | 3700 | 290 | 112 | 870 | 18 | 0.25 | 0.3 |
配置FL60BLW42-24V-37110A无刷直流电机 （FL60BLW42-24V-37110A BLDC Motor）
| 减 速 比 Reduction ratio | 3.6 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | 154 | 187 | |
| 减速级数 Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | |
| 减速器长度(L) Length(L) | mm | 37.8 | 37.8 | 37.8 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 71.9 | 71.9 |
| 空载转速 No-load speed | r/min | 1194 | 1012 | 807 | 331 | 287 | 239 | 187 | 154 | 100 | 83 | 70 | 60 | 45 | 36 | 28 | 23 |
| 额定转速 Rated speed | r/min | 1028 | 871 | 684 | 285 | 247 | 206 | 161 | 132 | 86 | 71 | 61 | 51 | 39 | 31 | 24 | 20 |
| 额定转矩 Rated torque | N.m | 0.94 | 1.1 | 1.3 | 3.1 | 3.5 | 4.2 | 5.4 | 6.6 | 9.1 | 11 | 13 | 15 | 20 | 23 | 29 | 30 |
| 最大瞬间允许负载Max. permissible load in a short time | N.m | 9 | 9 | 9 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 |
