60JMS300K-60STH
产品中心 减速电机

60JMS300K-60STH

1.8° 60mm, Nema 24, 配60mm行星齿轮箱步进电机
选件:
  • 60JMS300K-60STH

    编码器

  • 60JMS300K-60STH

    齿轮箱

  • 60JMS300K-60STH

    接插件

  • 60JMS300K-60STH

    刹车

混合式步进行星齿轮减速电机  (内齿圈材质:金属)

Planetary Gear Stepping Motor   (Ring Gear Material: Metal)


FL60STH/60JMS300K

Φ60行星减速器,允许转矩范围:9N.m~30N.m

60mm Planetary Gearbox,Permissible Load Range: 9N.m~30N.m


行星齿轮减速器  Planetary Gearbox

内齿圈材料 Ring material金属 metal
输出轴轴承形式  Bearing at output滚动轴承Ball bearings
最大允许径向负载(离法兰12mm处)300N
Max. Radial load(12mm from flange)
最大允许轴向负载 Max. shaft axial load200N
径向间隙(测量点尽量接近法兰)≤0.08 mm
Radial play of shaft(near to flange)
轴向间隙 Axial play of shaft≤0.4 mm


FL60STH混合式步进电机性能  FL60STH Hybrid Stepping Motor Specifications

Model No.额定电压每相电流每相电阻每相电感保持转矩引出线数转动惯量重 量长度L1适配减速比

Rated VoltageCurrent/PhaseResistance/Phaselnductance/PhaseHolding Torque# of LeadsRotor lnertiaWeightLength L1Max. Gear Ratio
单轴 Single ShaftVAΩmHkg.cm
g-m2kgmm
FL60STH45-2008AF2.12.80.7521182750.647≤1:115
FL60STH56-2008AF2.522.80.93.616.583000.7756≤1:77


行星齿轮减速器性能  Planetary Gearbox Specifications

减 速 比   Reduction ratio3.64.25131518234755657796121
 精确减速比   Accurate Reduction Ratio

18/5

17/4324/25153/10289/16248985932/1251337/252601/404913/64289/31088/8
减速级数 Number of gear trains123
减速器长度(L2)  Length(L2)mm37.849.460.8

最大额定转矩kg.cm

Max. rated torque

90150300

瞬间允许转矩kg.cm

Short time permissible torque

270450900
效 率    Efficiency%0.90.810.73
背隙(无负载时)Backlash at no-load0.5°1.0°1.5°
重 量    Weight g500688876

该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

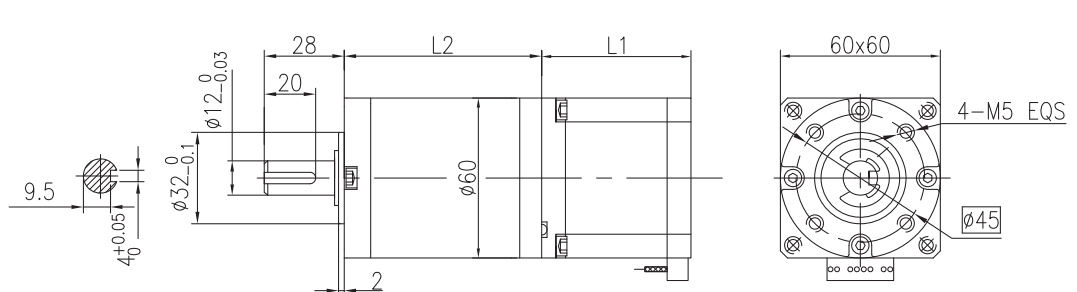

电机尺寸
