FL90BLW-56JM450K
产品中心 行星减速箱

FL90BLW-56JM450K

90mm外转子无刷电机配56mm行星减速箱
选件:
  • FL90BLW-56JM450K

    编码器

  • FL90BLW-56JM450K

    齿轮箱

  • FL90BLW-56JM450K

    接插件

  • FL90BLW-56JM450K

    刹车

外转子无刷直流行星齿轮减速电机(内齿圈材质:金属)

BLDC Planetary Gear Moto (Ring Gear Material: Metal)

型号范围
FL90BLW27/56JM450K

Φ56减速器,允许转矩范围:4.0N.m~45N.m

56mm OD Planetary Gearbox, Permissible Load Range: 4.0N.m~45N.m


接线方式   Wire Diagram


Pin接插件型号Type功 能Functions说  明Description
1PIN3MOLEX39-28-1083霍尔电源正 (Vcc)
2PIN1MOLEX39-28-1083霍尔U  (Hu)
3PIN2MOLEX39-28-1083霍尔V  (Hv)
4PIN5MOLEX39-28-1083霍尔W  (Hw)
5PIN6MOLEX39-28-1083霍尔电源负 (GND)
6PIN7MOLEX39-28-1083相U  (Phase U)
7PIN8MOLEX39-28-1083相V  (Phase V)
8PIN4MOLEX39-28-1083相W  (Phase W)



无刷电动机主要技术参数  Brushless Motor Technical Data


电机型号极 数相 数额定电压空载转速额定转速额定转矩额定功率峰值转矩峰值电流电 阻电 感
TYPENumber of polesNumber of phaseRated voltageNo-load speedRated speedRated torqueRated powerReak torquePeak currentLine to line resistanceLine to line inductance



VDCr/minr/minmN.mWmN.mAohmsmH
FL90BLW27-24V-37130A22324340027000.4571301.6230.210.19
FL90BLW40-48V-16170A22348195016700.9641693130.650.9



无刷行星齿轮减速电机主要技术参数  Brushless Gear Motor Technical Data

配置FL90BLW27-24V-37130A无刷直流电机(LD=27mm)   FL90BLW27-24V-37130A BLDC Motor(LD=27mm)

减 速 比   Reduction ratio3.64.255.3313151823284352617296121154187
减速级数 Number of gear trains1112222233333344
减速器长度(L)  Length(L)mm40.340.340.353.853.853.853.853.867.267.267.267.267.267.280.680.6
额定转速   Rated speedr/min750635507208180150117966352443828221814
额定转矩   Rated torqueN.m1.51.824.85.66.78.5101417202432364545
最大瞬间允许负载Max. permissible load in a short timeN.m12121236363636367272727272729090


配置FL90BLW40-48V-16170A无刷直流电机(LD=40mm)   FL90BLW40-48V-16170A BLDC Motor(LD=40mm)

减 速 比   Reduction ratio3.64.255.3313151823284352617296
减速级数 Number of gear trains1112222233333
减速器长度(L)  Length(L)mm40.340.340.353.853.853.853.853.867.267.267.267.267.2
额定转速   Rated speedr/min4643933131281119373603932272317
额定转矩   Rated torqueN.m3.13.74.210121418223037434545
最大瞬间允许负载Max. permissible load in a short timeN.m12121236363636367272909090

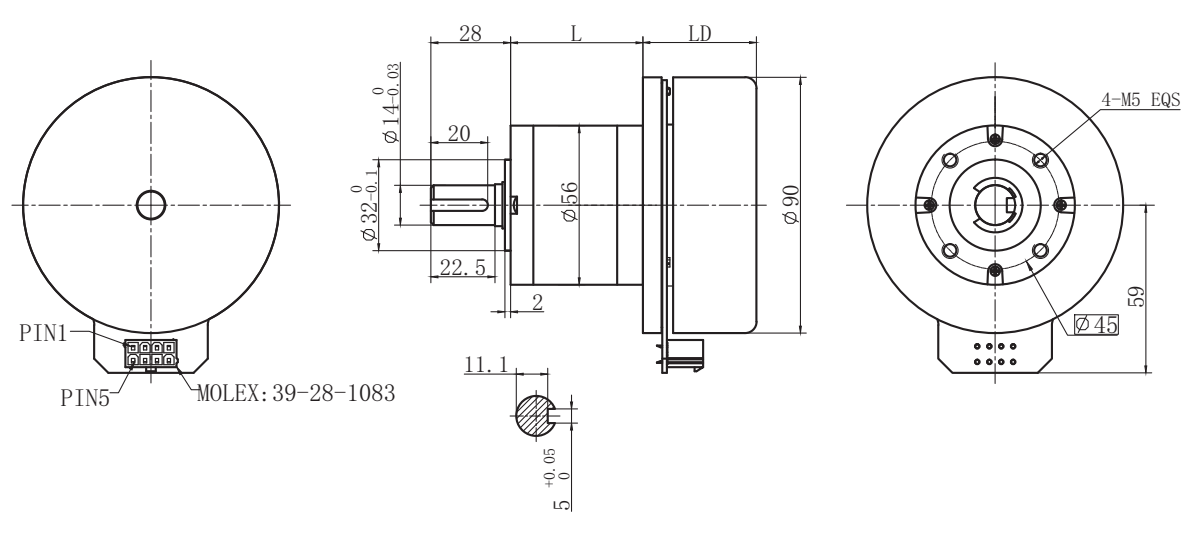

电机尺寸


资料下载
